On this page are a number of easy steps showing you how to make an indoor diamond kite from readily available materials.
MBK Indoor Diamond
MBK Indoor Diamond
The only materials required for this design are
- 1 sheet of plain copier paper. A4 or Letter size. Use colored paper if you want to!
- 18mm (3/4") clear sticky tape. In a dispenser preferably. Narrower tape would be even better, if you have it.
- A light plastic bag, at least 45cm x 30cm (18" x 12") before being cut open. I used large-size freezer bags.
- Any polyester sewing thread, preferably the lightest available.
The tools required, if you can call them that, are
- a pair of scissors
- a ruler
- a straight edge longer than 45cm (18")
- a ball-point pen
- colored permanent markers
Note: In the photos below, yellow lines have been added to make clear where the edges of sticky tape are.
Step 1 - Make Sail

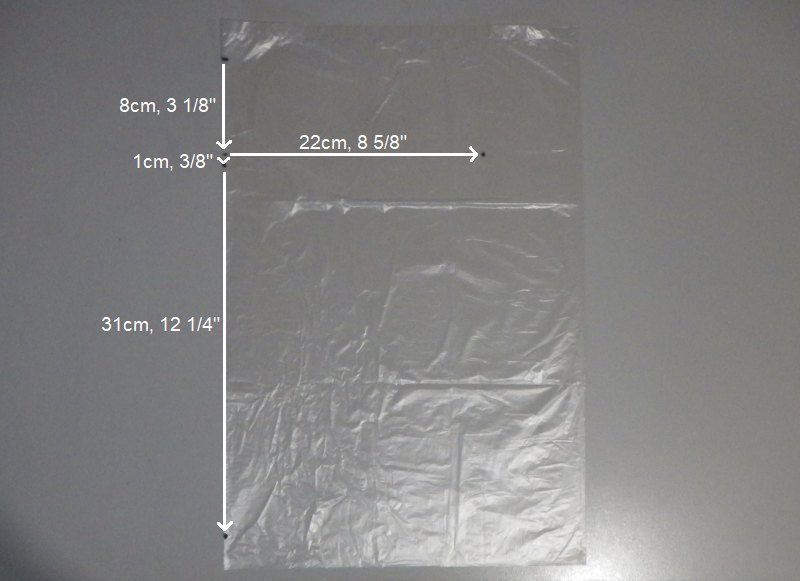

Measured and dots marked
- Lay down a plastic bag, and smooth it out to remove the most obvious folds and creases.
- Measure and mark dots as indicated in the photo.

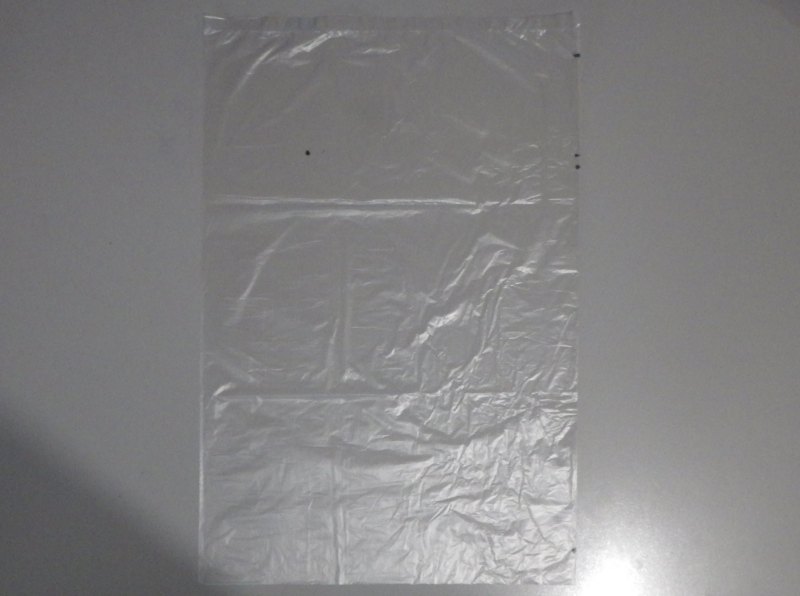

Bag flipped and dot traced
- Flip the bag over.
- Mark a dot over the one showing through the plastic. To the left in the photo above.

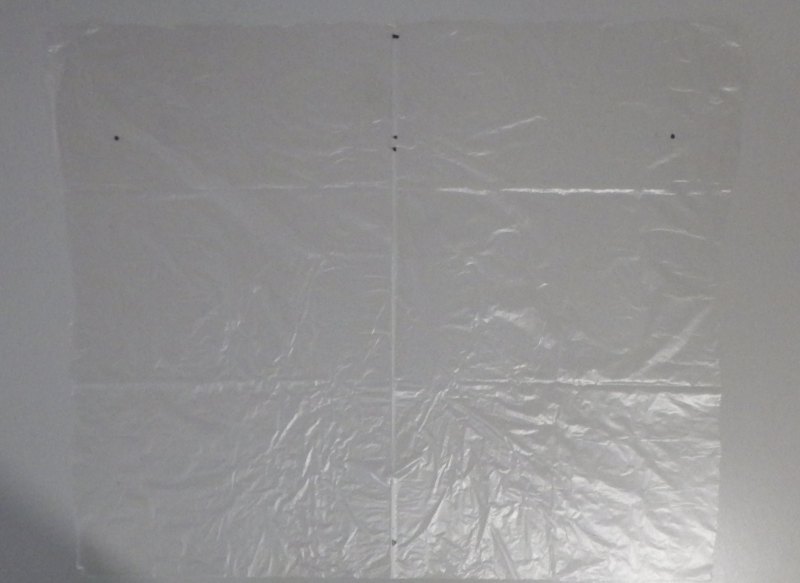

Bag cut and opened out
- Cut the bag along the sealed edge, to open it.
- Cut the bag along the opposite side to the side with 4 dots.
- Open the bag out into a single flat sheet, with the dots on top. In the photo you can see all 6 dots.
All lines drawn
- Rule lines between 4 of the dots as shown, to complete the diamond shape.
Step 2 - Decorate Sail
Do you have permanent colored markers? Time to take them out...

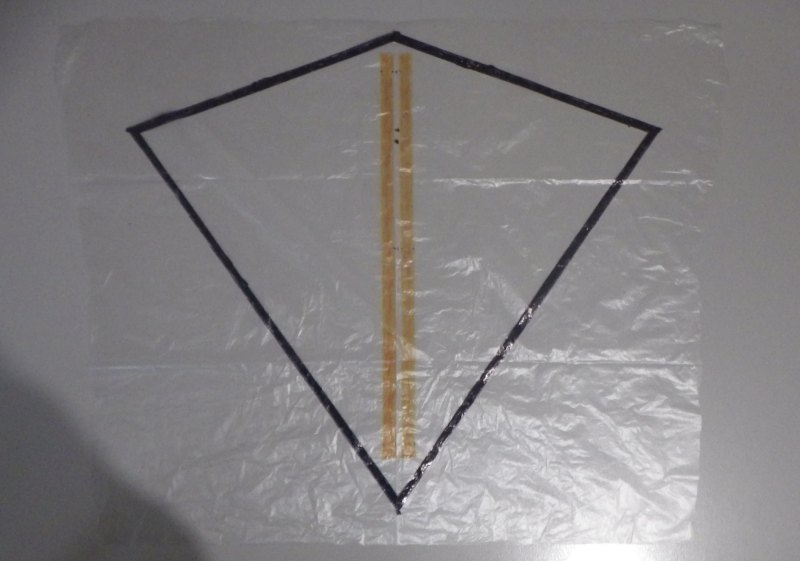

Decorated with permanent markers
- My approach was to put a 0.6 cm (1/4") wide border of black all around on the inside of the diamond outline. Followed by 1 cm (3/8") wide colored stripes down each side of the center-line, 0.6cm (1/4") apart. See the photo.
- You do whatever you like! Just try not to add too much weight though. Doing 'sparing line art' is how to make an indoor diamond kite look good and minimize weight.
Diamond shape cut out
- Cut all around the diamond shape with scissors. Cutting thin plastic can be tricky so take your time. Sharp scissors help!
- From here on, we will refer to the plastic piece as the sail.
Step 3 - Make Spars
Measure And Draw

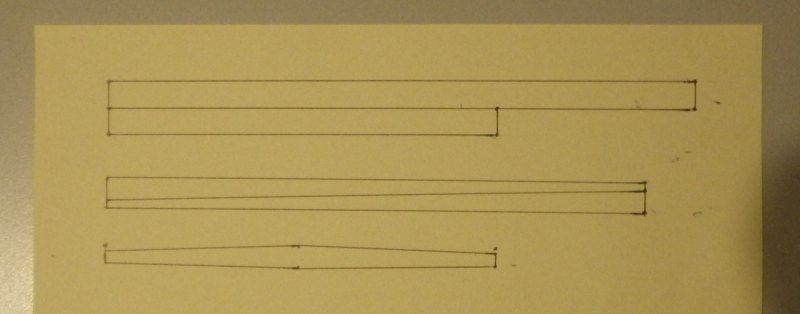

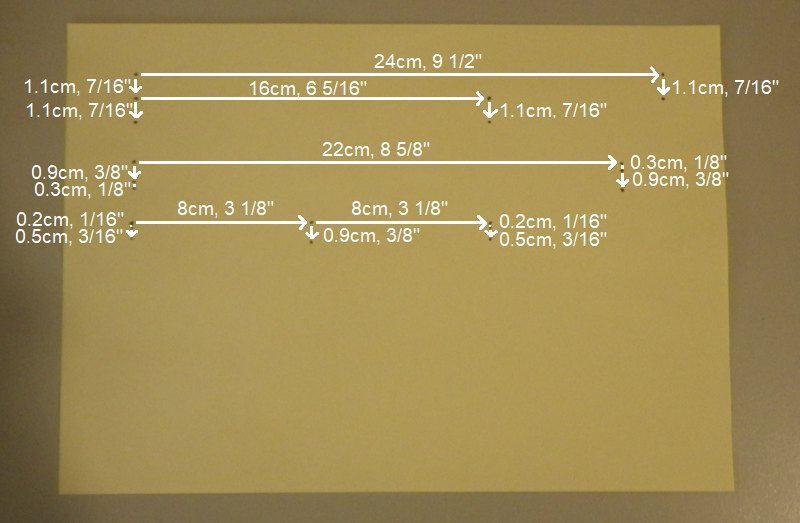

Dots measured and marked
- Take your sheet of paper and mark dots as shown.
Note: Some of the dots were too close together to fit a complete arrow between them on the photo. The measurements show how far to go down in each case. Easy!
- With ruler and pen, connect the dots as shown.
Laminate And Cut Out

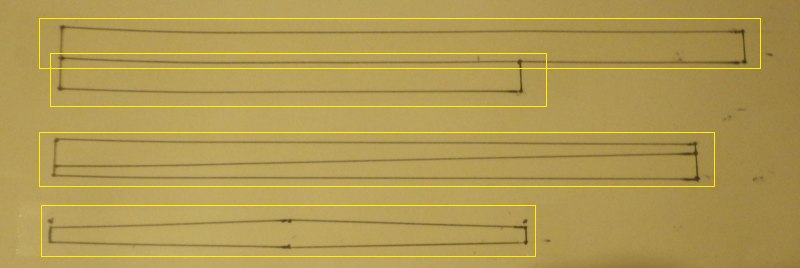

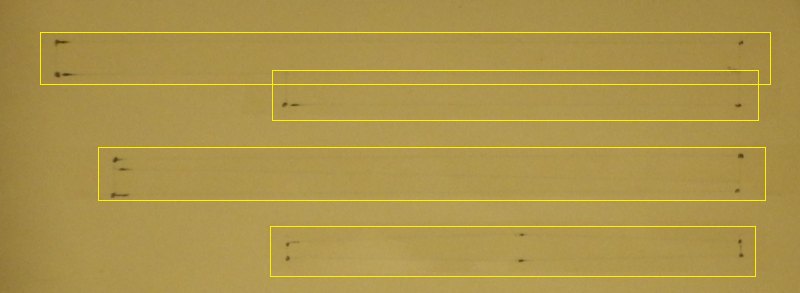

Tape laid down over shapes
- Lay down sticky tape to fully cover the shapes. A small amount of overlap is OK.
Tape laid down over shapes, reverse side
- Flip the paper over so you can add tape to the reverse side of all the shapes. It might help to place the paper up against a well-lit window, to trace the corners. Another way is to poke holes through the paper with a pin, at all the corners. Then you can see where all the shapes are.

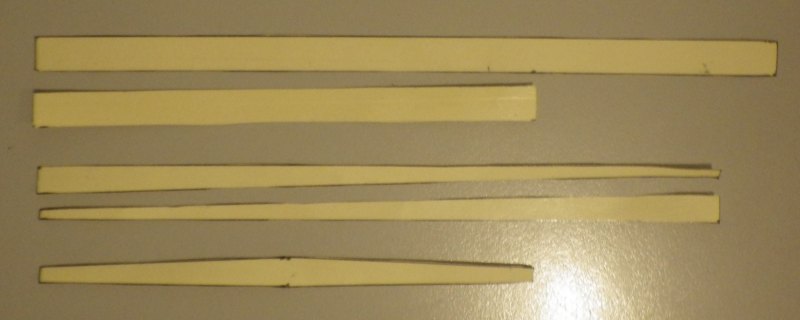

Spar pieces cut out
- Cut out all the shapes, as shown.

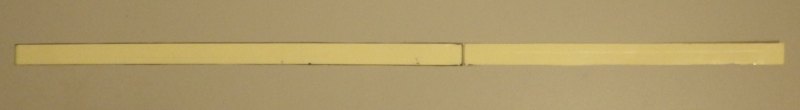

Equal width rectangles joined
- Lay down the 2 rectangles of equal width end-to-end, checking the alignment with a straight edge such as a ruler.
- Tape the pieces together at the join. Use just enough tape to go once around the entire join.

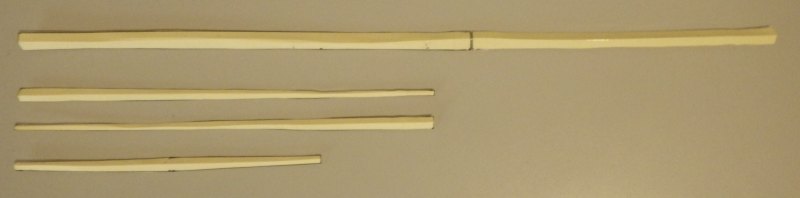

- Fold all the shapes in half down their lengths as shown.
- Crease all the folds sharply. The thin ends are tricky, but it can be done! Just do the best you can, by working along from the thicker ends and it should be OK. Pinching between thumb-nail and fore-finger works well.
- What you have now is a vertical spar (the longest piece), 2 horizontal spars (the next longest pieces) and the cross-member (the shortest piece).
At this point, you're about half-way through learning how to make an indoor diamond kite! The hardest bits have been done already, I'd say.
Step 4 - Attach Spars
Tape Vertical Spar
Vertical spar in position
- Flip the sail so the art work is against the table.
- Take the vertical spar and align one end to the top corner of the sail. Make sure the join in the spar is closest to the bottom end of the sail. Also ensure the fold angle is 90 degrees or a little less.

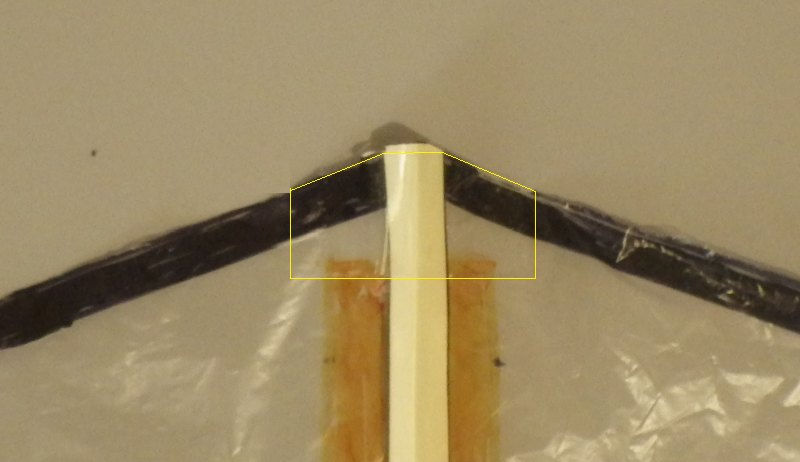

Spar taped on, at nose end
- At the top corner of the sail, place a short strip of sticky tape across the fold line of the spar.
- Gently press down on both sides so the tape goes down then across to the left and right.
- With scissors, trim the overhanging tape flush with the sail edges. See the photo.

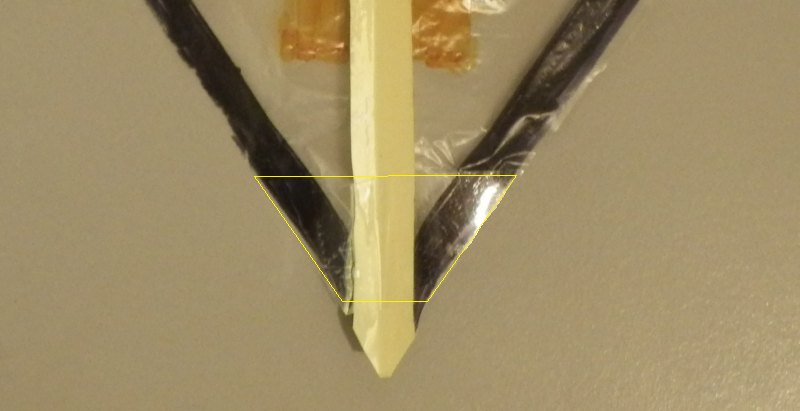

Spar taped on, at tail end
- At the bottom corner of the sail, lay down a strip of tape in the same way as before.
- This time, with scissors, trim both overhanging tape and the spar itself so it all looks neat and tidy around the bottom corner. See the photo.
Tape Horizontal Spars
Horizontal spars in position
- In a similar way, lay down the horizontal spars, ensuring the fold angles are 90 degrees or a little less.
- Adjust where the wide ends touch the vertical spar, so the horizontal spars are at right-angles (90 degrees) to the vertical spar. The thin ends should pass over the side corners of the sail. See the photo.

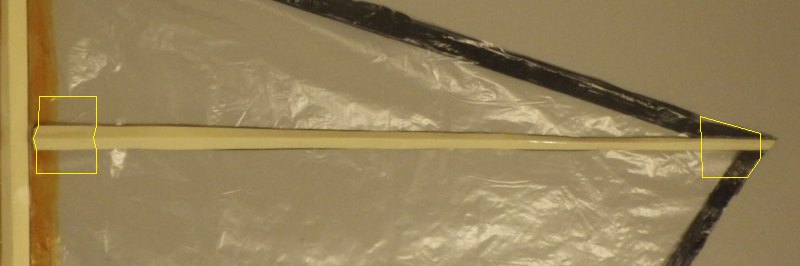

Horizontal spars taped
- Tape the spars in place. It's OK to let the thin ends go flat against the plastic when taped.
- With scissors, trim the overhanging tape and the spar-tips so it all looks neat and tidy around the side corners of the sail. See the photo, which just shows one side of the kite.

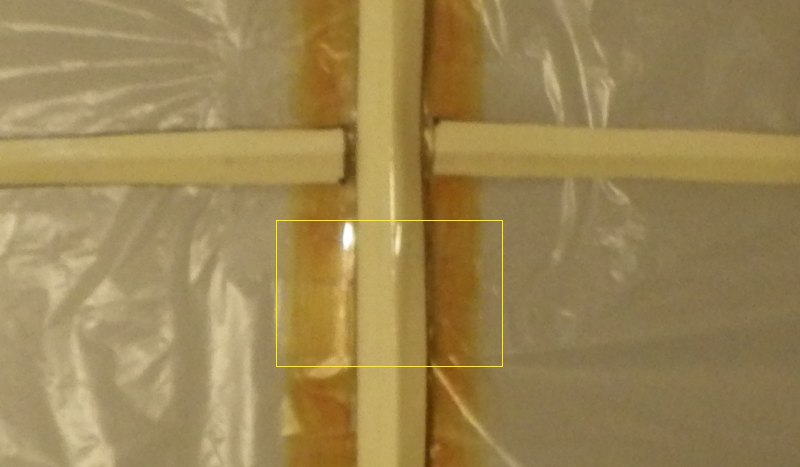

Final tape added over vertical spar
- At this point, lay down a short strip of tape across the vertical spar as well. Just below the horizontal spars, as shown in the photo.
Step 5 - Attach Cross-Member

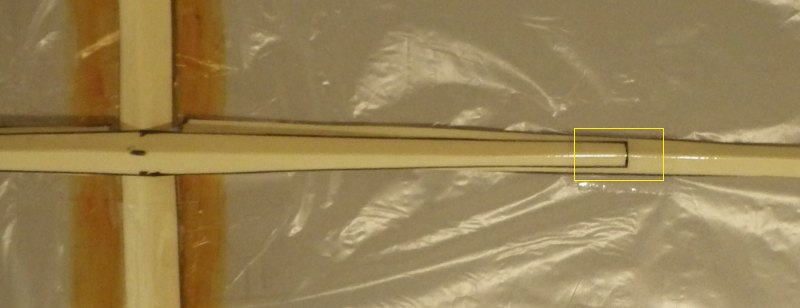

One end of cross-member attached
- Using a ruler, make a small mark exactly half-way along the cross-member piece.
- Place the cross-member onto the horizontal spars as shown, aligning the mark with the fold in the vertical spar.
- Stick one end of the cross-member onto a horizontal spar as shown, using a square of sticky tape.

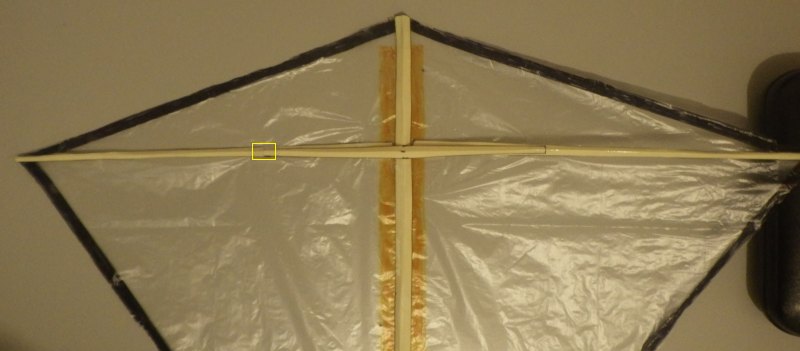

Other end of cross-member attached
- Now support the horizontal spar with some handy object underneath the sail corner.
- Shift the supporting object until the spar tip is 3cm (1 1/8") clear of the table top.
- Gently place a square of sticky tape over the other end of the cross-member, so it too is stuck to the cross-spar.
- Make sure the sticky tape is stuck firmly, then remove the supporting object.
Step 6 - Attach Flying Line
You have pretty much finished learning how to make an indoor diamond kite at this point!

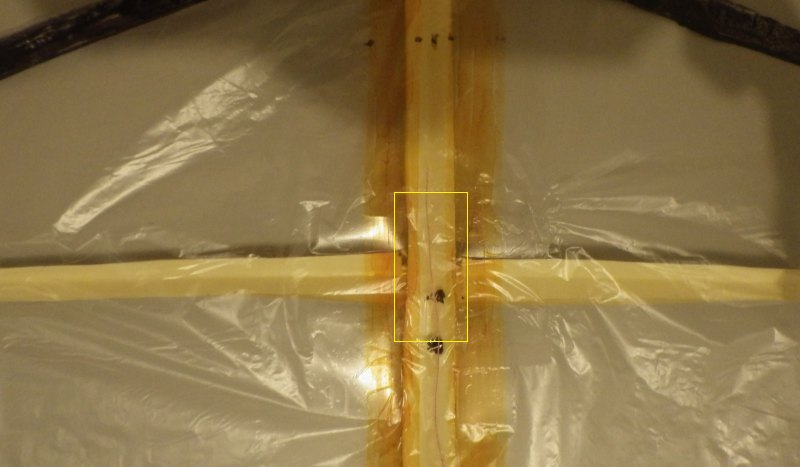

Thread laid down and taped
- Flip the kite over so the black dots under the vertical spar are visible.
- Cut off about 2 meters (6 feet) of polyester sewing thread and lay one end over the lower black dot.
- Stick down at least 3cm (1") of the thread by lining up a 3cm (1") strip of sticky tape with the dot, as shown in the photo. Press gently, to avoid crushing the paper spars.
Note: Those horizontal spars should really line up with the upper dot - it's out by a few mm but won't matter :-)

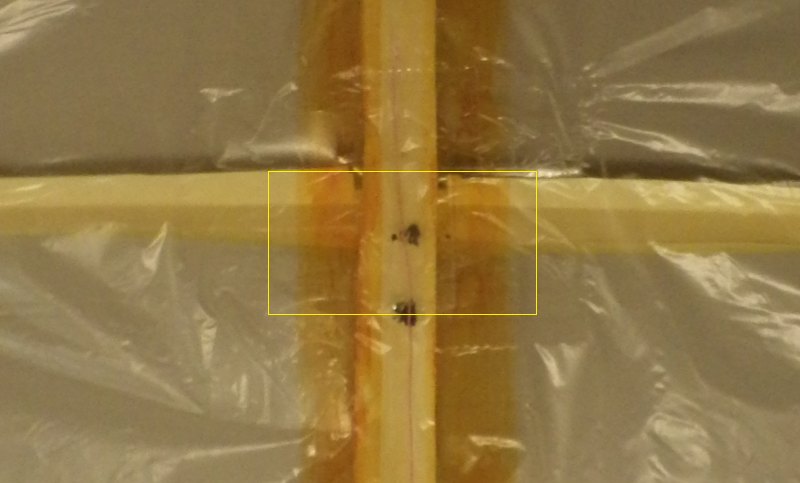

Second bridle tape laid across
- Add another 3cm (1") strip of tape cross-ways, as shown in the close-up photo. The kite is ready to fly.
Step 7 - Flying!

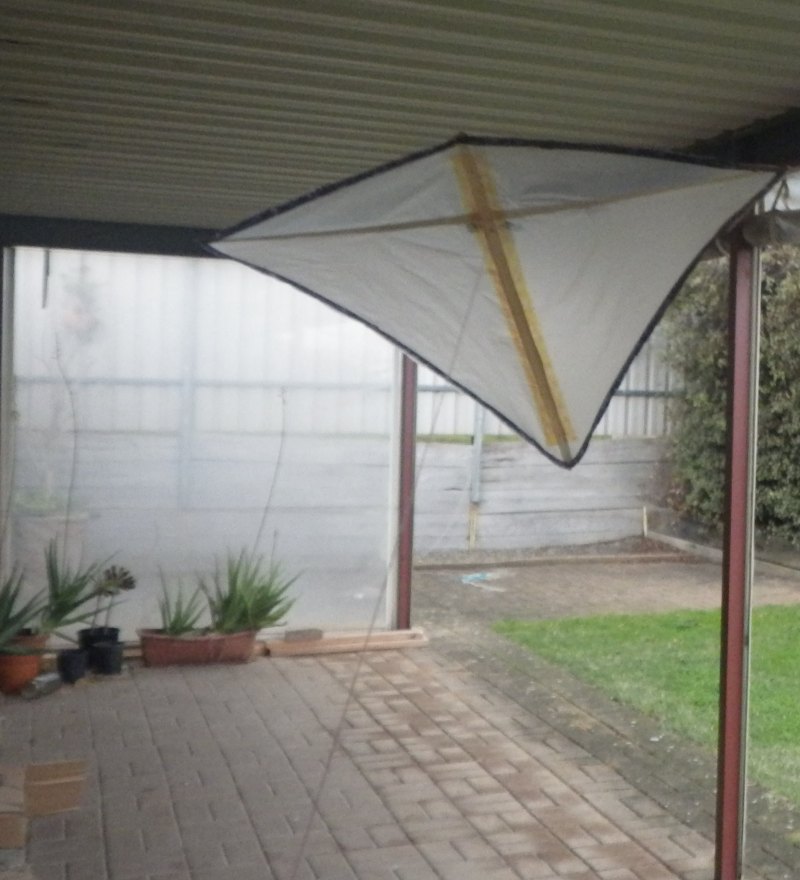

Indoor Diamond floats up
This is a very low-speed kite and it will effortlessly float up at walking pace. Be careful not to jerk the thread or pull too quickly, since this will promptly fold up at least one of the spars!
If a spar does fold up, don't despair. Just carefully pinch the paper where it failed, to get it back into that V-shape section once again. Then try again, going a little slower or smoother this time.
The Launch Technique
This is how I like to launch, on a length of thread equal to your shoulder height...
- Lay the kite flat on the floor, with the thread on top of course and the tail end pointing at your feet.
- Lift gently straight up, while taking a couple of quick steps backwards.
- If the kite appears to be rising, turn around and walk forwards while looking back over your shoulder.
- Within seconds, you should see the kite floating behind. Walk a little faster to climb the kite, slow down to descend. It's a fine balance!
If you have the space, try letting out more thread and adjusting your speed until the kite cruises along just short of the ceiling. Look out for light fittings and so on. Look where you're going too, from time to time ;-)
If you need even more line length, just tie on more thread and wind it onto a small square of cardboard.
Ooops, I bent the vertical spar... OK, if this happens due to flight loads, it can seriously weaken the kite. To the point where it's no fun to try and fly any more. But the repair is straightforward. Here's how...
- Draw a 1.1cm x 5.0cm rectangle on a sheet of paper.
- Cover the rectangle with sticky tape on one side of the paper.
- Cut out the rectangle and fold it in half lengthwise.
- With the tape on the outside, place the rectangle over the vertical spar and secure it at each end with sticky tape. See the photo below...

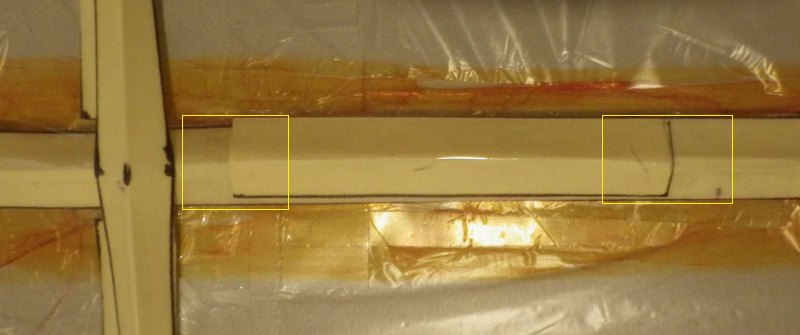

Vertical spar repair, after over-stress
I hope you have enjoyed learning how to make an indoor diamond kite this way.
