How To Make A Paper Sode Kite

Step-by-Step - Page 2 of 3

The MBK Paper Sode


The Upper Horizontal Spars

Measure Shapes

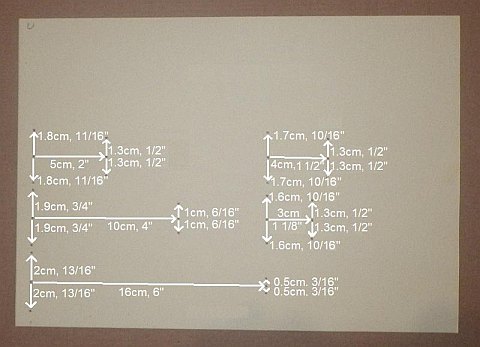

The Paper Sode kite - measured and dots marked.Measured and dots marked
  • Measure and mark dots as indicated in the photo. The 5 shapes can be placed anywhere on the paper, as long as they don't overlap.


Draw Lines

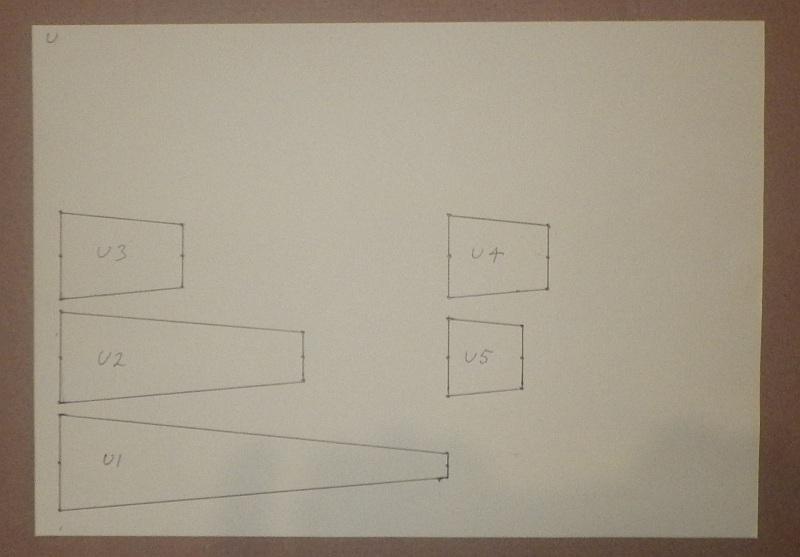

The Paper Sode kite - lines drawn between dots.Lines drawn between dots
  • Using your pen and ruler, connect the dots as shown. As you can see in the photo, you don't need a line drawn across the middle of each shape.
  • Inside each shape, mark U1, U2 and so on, as shown. This will avoid confusion later on.



Duplicate Shapes

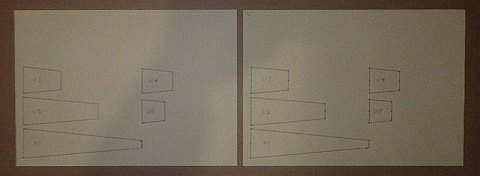

The Paper Sode kite - the 5 shapes duplicated onto another sheet of paper.The 5 shapes duplicated onto another sheet of paper
  • Get a blank sheet of paper and place it over the drawn shapes.
  • Trace dots at the positions of the shape corners. Up against a window works well, with sunshine lighting up both thicknesses of paper from behind.
  • Rule lines between the corner dots. There's the original and the copy in the photo.


Tape Over

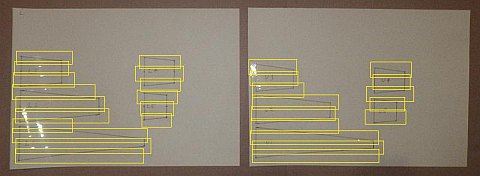

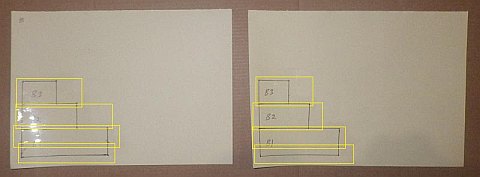

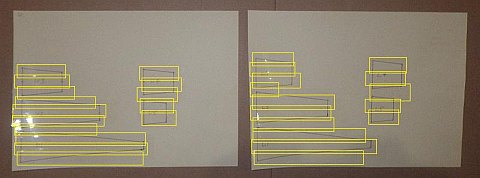

The Paper Sode kite - shapes taped.Shapes taped
  • Lay strips of sticky tape over the spar shapes as illustrated in the photo.
  • The strips of tape can overlap slightly and should cover the shapes completely. That's the only requirement, so don't fuss over the details in the photo above!


Cut Out

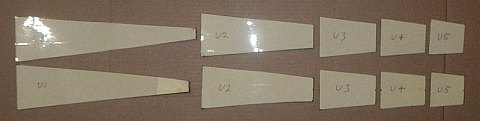

The Paper Sode kite - shapes cut out.Shapes cut out
  • Cut out the shapes, which will be totally covered in tape on one side. A little bit of curl is OK.


Stick Together

The Paper Sode kite - Longest and next-longest shapes stuck together.Longest and next-longest shapes stuck together
  • Lay down the 2 longest shapes with the taped sides facing down.
  • Lay the next-longest shapes over the top of the longest shapes, also with the taped sides facing down.
  • Line up the wide ends exactly, shift the top shape up or down to center it over the lower shape.
  • Stick the wide ends together with a square of tape, wrapping it around the edge.
  • Tack down the narrower ends with squares of tape as shown in the photo.




The Paper Sode kite - remaining shapes stuck down.Remaining shapes stuck down
  • In the same way, stick down the remaining shapes, ending with the smallest ones.


Encase In Tape

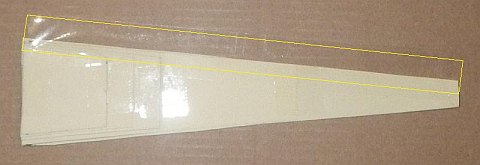

The Paper Sode kite - tape laid down over one long edge.Tape laid down over one long edge
  • Lay a strip of sticky tape the full length of one spar piece, leaving half the width overhanging.

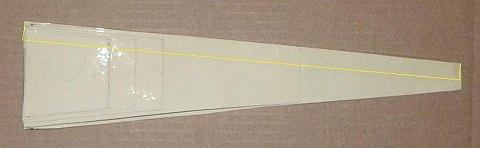

The Paper Sode kite - tape folded around long edge.Tape folded around long edge
  • Fold the overhanging tape around so it sticks to the other side.




The Paper Sode kite - tape laid and folded around remaining long edges.Tape laid and folded around remaining long edges
  • In the same way, wrap tape around the remaining long edges, so both spar pieces are almost completely encased in sticky tape.
  • Using scissors, trim any overhanging tape from the short edges of the spar pieces.


Cut For Dihedral Joins

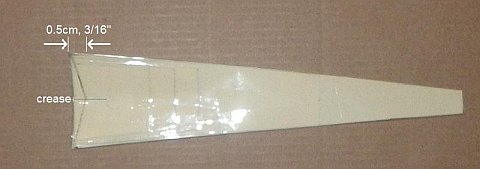

The Paper Sode kite - measured and lines drawn, on 1 spar piece.Measured and lines drawn, on 1 spar piece
  • Fold a spar piece in half near the wide end. Create a crease line near the edge.
  • Carefully measure 0.5cm (3/16”) along the crease from the edge, and make a dot.
  • Rule lines from the corners to the dot, as shown in the photo. A ballpoint pen works OK over the tape - with plenty of pressure!
  • Measure and draw lines on the other spar piece in the same way.

Note: A thin gray line has been added to show where the crease is.





The Paper Sode kite - cutouts done on both spar pieces.Cutouts done on both spar pieces
  • Using scissors, cut along the 2 ruled lines on both spar pieces. See the photo.


The Lower Horizontal Spars

Measure Shapes

The Paper Sode kite - measured and dots marked.Measured and dots marked

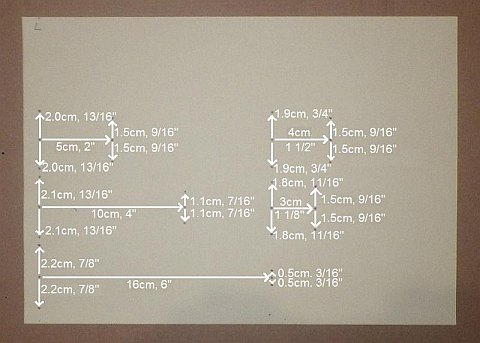

  • Measure and mark dots as indicated in the photo. The 5 shapes can be placed anywhere on the paper, as long as they don't overlap.


Draw Lines

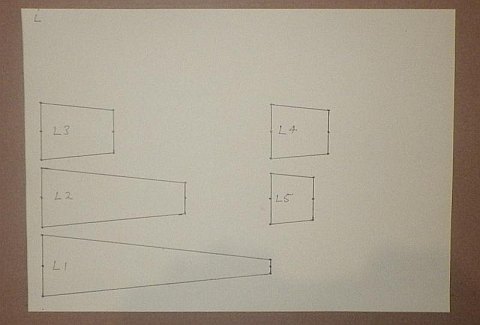

The Paper Sode kite - lines drawn between dots.Lines drawn between dots
  • Using your ruler, connect the dots as shown.
  • Inside each shape, mark L1, L2 and so on, as shown. Note that these shapes are very similar to the upper spar shapes!

Note: From here down, for the next few section titles, the process is exactly the same as it was for the upper spar pieces. So just photos and captions are used this time...



Duplicate Shapes

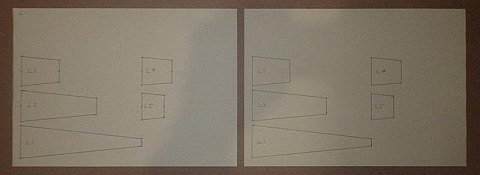

The Paper Sode kite - the 5 shapes duplicated onto another sheet of paper.The 5 shapes duplicated onto another sheet of paper




Tape Over

The Paper Sode kite - shapes taped.Shapes taped




Cut Out

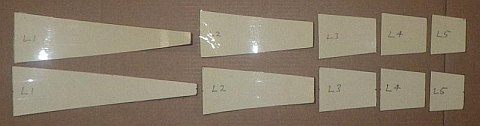

The Paper Sode kite - shapes cut out.Shapes cut out




Stick Together

The Paper Sode kite - all the shapes aligned left and stuck down, smallest on top.All the shapes aligned left and stuck down, smallest on top




Encase In Tape

The Paper Sode kite - long edges taped.Long edges taped




Cut For Dihedral Joins

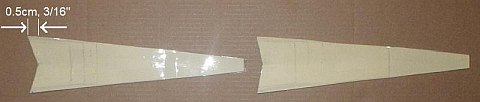

The Paper Sode kite - cut-outs done on both spar pieces.Cut-outs done on both spar pieces




The Bottom Horizontal Spars

Measure Shapes

The Paper Sode kite - measured and dots marked.Measured and dots marked

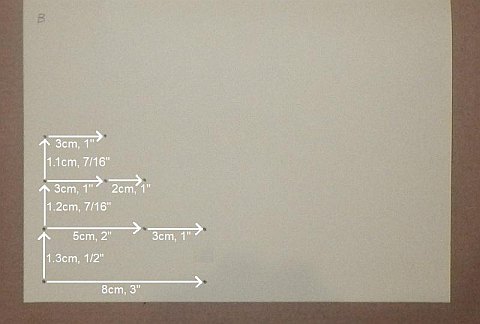

  • Measure and mark dots as indicated in the photo.
  • That's the short edge of the paper across the bottom. Fold the paper in half and crease so the 2 short edges line up.
  • Open out the paper again.

Note: You've done all this before, although the shapes were different. Hence the remaining instructions for the Bottom Horizontal Spars are just photos and captions...



Draw Lines

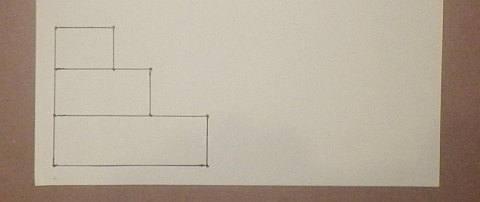

The Paper Sode kite - lines drawn between dots.Lines drawn between dots




Duplicate Shapes

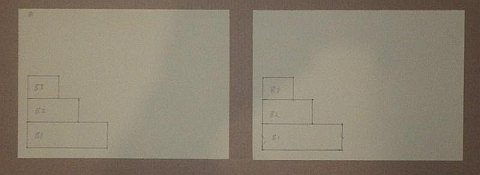

The Paper Sode kite - the 3 shapes duplicated, after tracing and tearing the paper in half.The 3 shapes duplicated, after tracing and tearing the paper in half




Tape Over

The Paper Sode kite - shapes taped.Shapes taped




Cut Out

The Paper Sode kite - shapes cut out.Shapes cut out




Stick Together

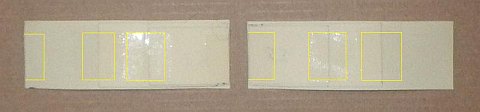

The Paper Sode kite - shapes aligned left and stuck down.Shapes aligned left and stuck down




Encase In Tape

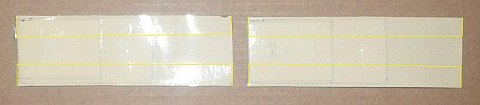

The Paper Sode kite - all long edges taped.All long edges taped




Cut For Dihedral Joins

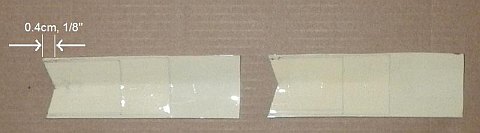

The Paper Sode kite - cut-outs done for both spar pieces.Cut-outs done for both spar pieces




Vertical Spar Attachment

Tape One Edge

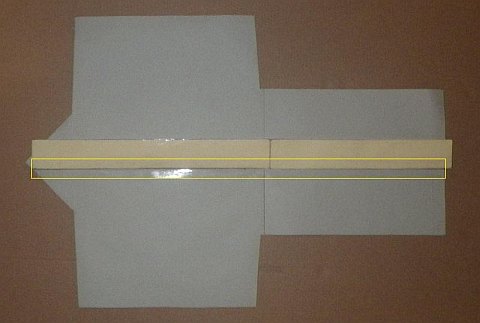

The Paper Sode kite - one edge taped down.One edge taped down
  • Take the longest paper spar piece – the vertical spar - and lay it down, aligned with one of the guide lines and the edge of the sail as shown. The shortest length of single-thickness should be at the nose end of the sail. At the left in the photo. The shorter layers of paper should be underneath, out of sight.
  • Tack in place with squares of sticky tape – at least 1 in the middle and 1 near each end.
  • All good? Now lay a strip of tape down the whole length, as indicated in the photo.


Tape Other Edge

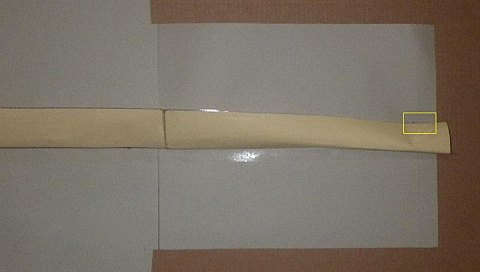

The Paper Sode kite - other edge tacked at tail end.Other edge tacked at tail end
  • Flip the spar piece across and flatten it down, so the second guide line becomes visible.
  • Go to the tail end of the sail and pull the free edge of the spar piece across so it lines up with the second guide line. Tack it down with a short strip of tape, as indicated in the photo.

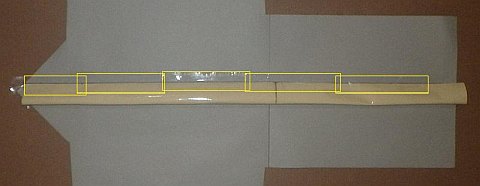

The Paper Sode kite - edge taped the rest of the way, before ends trimmed.Edge taped the rest of the way, before ends trimmed
  • Tack down more and more of the spar, making sure the edge lines up with the second guide-line. Go all the way across to the nose end of the sail as shown in the photo. The tape strips can overlap a little – but don't leave any gaps.
  • At each end, trim off any overhanging bits of paper and/or tape, with scissors.


Shape The Spar

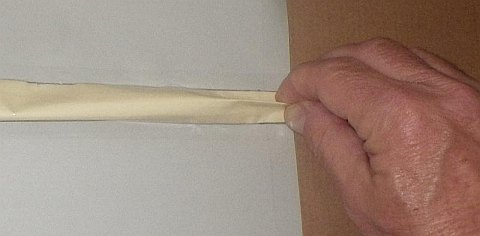

The Paper Sode kite - pinching started at one end.Pinching started at one end
  • Go to one end of the spar and carefully pinch it between finger and thumb, as in the photo. The aim is to get a crease right in the middle.

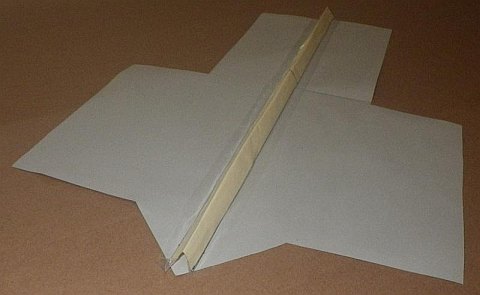

The Paper Sode kite - V-shape formed, all the way along.V-shape formed, all the way along
  • Work your way along the spar piece, pinching tightly all the way. I like to use both hands at once, close together.
  • Go all the way along and then back again, so nothing is missed. You have created a spar that is stiff enough to do the job required of it! See the photo.
