How To Make A Dopero Kite

Step-by-Step - The MBK 1-Skewer Dopero

This set of instructions on how to make a Dopero kite assumes you know absolutely nothing about kite making.

Learn how to make a Dopero kite like this one!

You might already have some of the simple tools and materials required. Anything you don't have is easily bought. If not exactly what I used, then at least something pretty similar!

These instructions on how to make a Dopero kite might look a bit long, but each step is quite simple to do. Just steadily work your way through from top to bottom, skimming over any detail that you don't need.

At 29cm (11 1/2") wide, the MBK 1-Skewer Dopero Kite is a rather small kite, with tip dihedral and a 4-leg bridle. If you spend some time tweaking the bridle, this tiny design will fly over a decent range of wind speeds!

1-Skewer kites are fun, but somewhat toy-like :-)  due to their rather small size. Fancy something much bigger to fly, suitable for teenagers and adults?

The "Making Skewer Kites" e-book has plenty of 58cm (23") designs in bamboo skewers and plastic. Plus all the 1-Skewer designs.

A handy approach is to just print out the pages for the kite you want to make next. The e-book is also handy for working off-line on a laptop, tablet or other device.




How To Make A Dopero Kite
Sail

Now's the time to read up on the 'tools' and materials required for making a Skewer kite, if you haven't already.

Sail template for the 1-Skewer Dopero kite.

The template shown above represents one side of the kite sail. You will now transfer these measurements to the sail plastic as follows...

The 1-Skewer Dopero - template shape marked on plastic bag.
  • Firstly, take a light plastic bag that will fit the entire Template shape within one side, and lay it flat on the floor.
  • Mark dots on the plastic, corresponding to the corners of the Template. There is no need to use a T-square, since any small error will be duplicated on the other side of the sail.
  • Using the marking pen, rule lines between the dots, as in the photo.

The 1-Skewer Dopero - complete sail outline marked on plastic.
  • Flip the plastic bag over, and trace over all the black lines using your marker pen and ruler.
  • Cut out a rectangular section of the bag containing the kite sail, open it out and lay it flat on the floor - you can now see the complete sail outline, as in the photo.
  • Cut along the black lines with scissors, to create the sail.




How To Make A Dopero Kite
Spars

For this Dopero, you need four 30cm (12") bamboo BBQ skewers for the spars. The photo shows all the spars laid over the sail, before being snipped to length with scissors.

The 1-Skewer Dopero - spars in place over sail.
  • Lay down 2 skewers vertically over the plastic, lined up as in the photo. Snip the bottom end of each skewer to length, so they line up with the bottom edge of the lower sail. These are the vertical spars.
  • Lay down another skewer across the left and right corners of the upper sail, and snip to length, removing the point. Also make an easily-seen mark on the skewer, at each point where it crosses a vertical spar. This is the upper horizontal spar.
  • Using a sharp corner, perhaps a blade of the scissors, make an indent in the bamboo, at the crossing-points you marked.
  • Do those last 2 steps again, over the widest part of the lower sail, to create the lower horizontal spar.




How To Make A Dopero Kite
Attaching Sail

The 1-Skewer Dopero - tip cap close-up

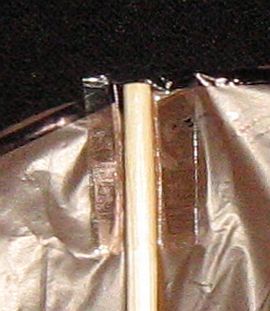

The 1-Skewer Dopero - lower sail leading edge
The 1-Skewer Dopero - crossing points glued
  • Lay down the vertical spars over the sail, and wrap a short length of clear sticky tape around each tip, securing them to the top corners of the upper sail and the bottom corners of the lower sail. The top photo shows the top tip in close-up.
  • Lay down the upper horizontal spar skewer and attach its tips to the upper left and right corners of the sail, in the same way.
  • Lay down the lower horizontal spar skewer and attach its tips to the left and right corners of the lower sail.
  • Fold down the flaps over the lower horizontal spar, and secure with short strips of tape on each side. In the middle photo, I have drawn yellow rectangles to show where the tape goes.
  • Bend the upper horizontal spar at an indent, until it starts to crack! Carefully increase the bend until the wing-tip stays at 0.08SL (2.3cm, 1") off the table top. Do the same for the other indent as well.
  • Do exactly the same for the lower horizontal spar, cracking the bamboo at both indents.
  • Dribble some wood glue all around where the skewers cross each other, for both horizontal spars. See the bottom photo. Use enough glue to make the bent part of the bamboo strong.

Be careful that the horizontal spars don't slip up or down the vertical spar while the glue is still wet.





How To Make A Dopero Kite
Sail Tethers

The 1-Skewer Dopero - sail corner ties
  • Cut off a piece of flying line of length 0.75SL (22cm, 8"). Tape one end to a corner of the upper sail, as in the photo. See how the tape points to the tip of the lower horizontal spar. Excess tape can be trimmed with scissors or folded back on itself.
  • Pass the other end of the line around the tip of the lower horizontal spar. Pull most of the slack out and tie off with a couple of Half Hitch knots. Using the Half Hitch makes them easy to unpick and re-tie later, if any adjustment is needed to make the kite fly straight.
  • Repeat the previous steps on the other side of the kite.
  • Snip off some of the excess line if you want to, but leave enough for adjustment purposes.

The kite should now look like the photo.





How To Make A Dopero Kite
Keels

Try this Kite Winder from Amazon, if you are not sure where to get suitable flying line. The 20 pound strength is ample for all the Skewer Series kites.
The 1-Skewer Dopero - making the keels
The 1-Skewer Dopero - a completed keel
  • Mark out a keel shape on some spare plastic, as per the dimensions on the template. For all the steps below, refer to the above photo if anything is unclear. A keel in black garbage bag plastic looks good with a lighter colored sail! If you lay black plastic against a window on a sunny day, even black marker lines show up easily, I've found. Rule the lines with the plastic flat against the window glass. You can also hold the plastic up to the light while cutting along the lines with scissors.
  • Cut out the keel and tape down 2 lengths of flying line onto one side, using clear sticky tape. One goes from the bridle attachment point to the upper attachment point, and the other goes from the bridle attachment point to the lower attachment point. The pieces of line hanging free should be at least as long as your finger.
  • Now flip the plastic over and tape down another 2 lengths of flying line, directly over the first 2.
  • Where 2 pieces of line come together, tie a Multi-Strand Simple Knot close to the plastic. These 2 knots will sit against a vertical spar.
  • Where the 4 pieces of line come together, tie them into another Multi-Strand Simple Knot close to the plastic, then tie another one further out. The photo on the right shows all the knots.

All done? Now do it all again to make the other keel!





How To Make A Dopero Kite
Attach The Bridle

The 1-Skewer Dopero - attaching the bridle 1.
The 1-Skewer Dopero - attaching the bridle 2

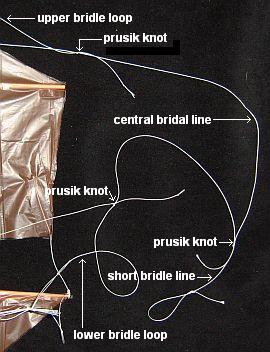

The 1-Skewer Dopero - bridle knots.
  • Lay the kite down with the keels on top, then cut off a length of flying line about 2 skewers long
  • Tie a small Loop Knot into each end.
  • Poke holes in the upper sail, and hence attach the line to the vertical spars as indicated in the top photo. Use a Double Wrap Slip Knot in each case. This is the upper bridle loop.
  • Now make another bridle loop line. Again, about 2 skewer lengths long, with a Loop Knot in each end. Make these Loop Knots much bigger, because...
  • Now attach each end of this line to a keel, using a Larks Head knot. This is the lower bridle loop. See the middle photo.
  • Take another length of flying line about 2 skewers long, and attach one end to the middle of the upper bridle loop and the other end to the middle of the lower bridle loop, using a Prusik Knot at each end. Let's call this the bridle line.
  • Now take a length of flying line about 1 skewer long, and tie one end to the bridle line with a Prusik Knot. Tie a small Loop Knot into the other end. There's the whole bridle, in the bottom photo.
  • Secure every knot on the vertical spars with a tiny blob of wood glue. 6 in all!




How To Make A Dopero Kite
Tail

The 1-Skewer Dopero - attaching the tail
  • Cut out a long thin rectangle of colored plastic for the tail. Mine is black, to contrast with the orange sail. Make it 10.0SL (290cm, 115") long and 0.2SL (5.8cm, 2 1/4") wide. Knot pieces together if necessary, to get the full length. Avoid taping, because it adds weight!
  • Tie one end around one vertical spar, and the other end around the other vertical spar. Slip the plastic under the bamboo and between the keel knots, but as close as possible to the lower knot. A single Half Hitch will do, since there are very low forces on the tail in flight. Pull it fairly tight and trim off any excess plastic. See the photo for the final result.



At this point, you've finished making the 1-Skewer Dopero!

To attach the flying line, just Lark's Head the flying line to the short bridle line.





How To Make A Dopero Kite
Flying!

The very first 1-Skewer Dopero kite in flight.

Before the first flight, you need to adjust the bridle...

Firstly, make sure the sliding knots on the upper and lower bridle loops are dead-center. An easy way to check this is to see if the kite hangs level, when you dangle it from the loop knot at the end of the bridle. Adjust both knots until everything looks square and level.

Out In The Field

My collection of real-life Dopero kite stories is worth checking out!

Illustrated with photos and videos, of course.

Secondly, make sure that the sliding knot on the central bridle line ends up between the upper horizontal spar and the top edge of the sail. Check this when the kite is laying on its back on the floor or table, with equal tension in all the bridle lines. Shift the knot if necessary, and hold up the bridle lines again to check. Repeat until it looks right.

If it's very windy outside, stay home! This is a light-to-moderate wind kite and won't like being launched in a gale.

Assuming there is some breeze outside, just dangle the kite at arm's length until the wind catches it. As long as you feel the kite pulling, let out line slowly by taking loop after loop off the winder.

Another approach is to get a helper to hold the kite up and let it go, on the end of maybe 10 or 20 meters (around 50 feet) of line. This way, the kite soon gets high enough to make it easy to let more line out.

The picture up there shows the very first version of the 1-Skewer Dopero climbing away in a light breeze. The black plastic sail, yellow keels and clear plastic tail made a nice combination!

Have fun flying, and I hope you've enjoyed learning how to make a Dopero kite.
