Fresh Winds Dowel Box Kite

by Jim Millisky
(Philadelphia, PA, USA )

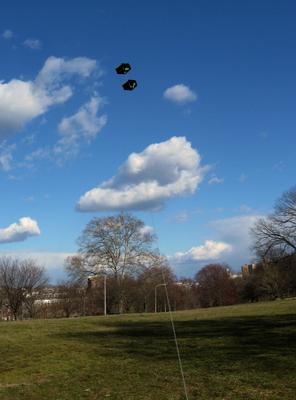

Box kite heading up

Box kite heading up

I finished making your fresh wind Dowel Box kite. I used 1/4" dowels for a little extra strength.

The kite was flying in 16-20 mph winds. Gusts were about 25 mph. The kite flew perfectly, but it sure did pull! I thought the string might break when the wind would gust!

Like your flight report, it flew at about a 75 degree angle, and was very exciting to fly. I could only take the kite to 100' or so, because I was in a small city park in Philadelphia. Looking forward to taking it to the beach!

Comments for Fresh Winds Dowel Box Kite

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Spars
by: Jim

Hi Tim,
I was wondering if the wood spars here in the states are of a lighter wood than in Australia? The 3/16 seemed flimsy to me, but maybe I just had a few lighter than normal spars. Your idea of thicker cross pieces is a good one! I am planning to use the 3/16 on the traditional box kite, as per your plan. 45 mph winds- WOW, that kite must have pulled like a truck!!
Take Care,
Jim

(T.P. - Most dowels over here are of Tasmanian Oak, also we get dowels from Indonesia - unsure what type that is, having not made any inquiries. Hardness seems similar, and these are supposed to be 'hardwood' dowels. Eeerm ... 45KPH not mph ;-) = around 25 - 30 mph)

Rating
starstarstarstarstar
Spars
by: Tim Parish

Sounds like you had a good first outing with this kite! The 3/16" dowels do look a little spindly, but I have had this design in the air while winds gusted to 45kph. Enough to knock the wind meter over on its little tripod!

Under those conditions, 3/16" cross pieces might snap - as mine did that day, but the main spars can take it. The bonus of course, is that the kite will fly at lower wind speeds than otherwise.

These days I always use or design cross-pieces that are thicker than the main spars. The horizontal cross-pieces for the new 2.4 meter (8 feet) long Multi-Dowel Box kite are 12.5mm compared to 9.5mm for the main spars.

A short bridle loop also helps to reduce stresses on a Box kite. So the towing point is not far below the kite in flight.

PS - I think I recognize your name as being one of my e-book customers. Well of course you are - this kite design doesn't appear on this website!
