Big Diamond Kite

by Jim Little
(Birmingham, Alabama USA)

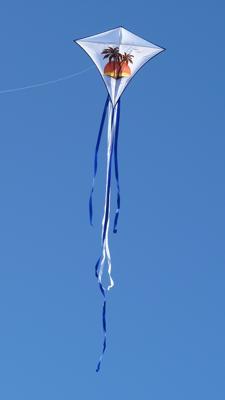

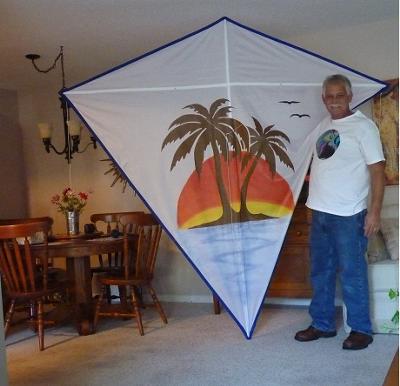

I took the kite plans on Tim's site here (thanks Tim) and stepped them up. This big Diamond kite is 8 ft. at the tips. I just flew it in Tybee Island Georgia on Oct/9/2010. It went right up and flew in very light wind.

This kite will break down to 4 ft. long and about 3 inches in diameter. The dowels are 1/2 inch wood and the kite is rip-stop nylon. It was a lot of work to build but when I saw it fly, it was all worth it.

Comments for Big Diamond Kite

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Your Kite
by: Nick R

Nice Kite. I'm currently trying to make one for the kids here in Sutton West VA, could you tell me the exact dimensions of your kite?

Rating
starstarstarstarstar
Simply Red
by: BJ

Hey Jim,

Initially, a very nice kite... job well done! I've had the idea for a giant diamond kite rolling around in my head since last year. Unfortunately, no one seems to manufacture one in an almost ready to fly state. What's a welder to do? Make his own I would think!

I'm considering an all red take down kite about 8'-10' tip to tip, and about 11'-14' tall with 25'-30' matching tail streamers. Based on their durability and light weight, I was thinking of fabricating the frame from 1/2" carbon fiber tubes, and light weight, rip stop nylon for the kite body. Any suggestions or ideas are welcome. Thanks.

Rating
starstarstarstarstar
Thank you for the nice comments
by: Jim Little

Gary and Tim, thank you for nice comments. By the way, the date is a typo, it should be 10/9/10 that I flew the kite. Tim, thanks again for your suggestions during the proto-type stage, they paid off big. This kite flies great with no tail and no bow line.

Rating
starstarstarstarstar
Great Kite
by: Gary Crenshaw

Don't you love it when a plan comes together?

Rating
starstarstarstarstar
Wow
by: Tim Parish

Great pics, thanks Jim! In fact, you are the first person to take advantage of the new feature which allows multiple uploads of images. Very handy for kite-fliers since you can show off an ultra close up AND an in-flight shot - as you have done.

Now I'm going to call my wife in to take a look at your impressive Diamond...
