New Style Of Kite Line Winder.

by Albert den Haan
(Ottawa, Ontario, Canada)

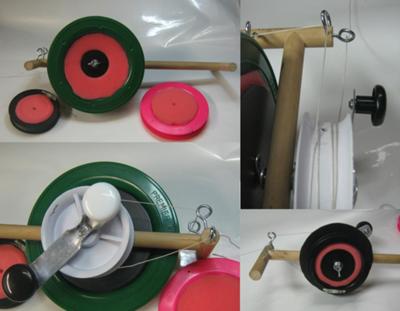

A photo montage of the KAPstan winder with 2 sizes of reel mounted

A photo montage of the KAPstan winder with 2 sizes of reel mounted

I'm working on a new style of kite line winder that I want to share.

It uses a capstan to pull the line, and then winds the line onto a lightweight reel.

The reel can be quickly dismounted and/or replaced to fly the kite directly from the reel or to wind down another kite.

The capstan has two crank handles to handle high and low pull situations, and foam inserts are used to adapt to large and small diameter reels.

Normally excess winding tension is a problem that breaks reels. This thing tends to leave little to no tension on the wound line. Very floppy!

The main disadvantage of this beast is the line threading from the mounted reel to the capstan. It is do-able, but there are just too many places for the line to get caught at the moment.

I'm working on more a detailed article. I just wanted to get this out to where others can take advantage of my summer's development.

Comments for New Style Of Kite Line Winder.

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
I finally put more details on Blogger
by: Albert dH

I finally struggled through putting up an article on blogger http://hackingonkitebits.blogspot.com/

There are more pictures and a bit of my thought processes on how I put my ideas together.

Show Tim how you put your own together!

Rating
starstarstarstarstar
Interesting
by: Tim Parish

You seem to have found quite an elegant and inexpensive way to get line onto a reel with low tension - well done! Keep on refining the idea. There'll soon be plenty of people hanging out for the next installment :-)

Click here to add your own comments
