Multi-Dowel Barn Door Kite:
Testing the Strength

by MBK Flight Reporter: Craig E.
(Shedd, OR, USA)

I love Hawaiian shirts!

I love Hawaiian shirts!

I love Hawaiian shirts!

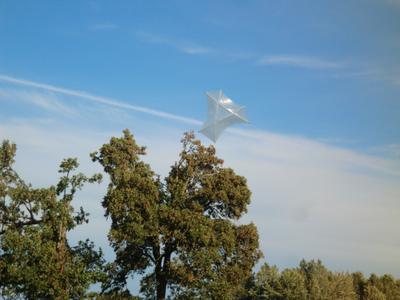

Another in flight shot

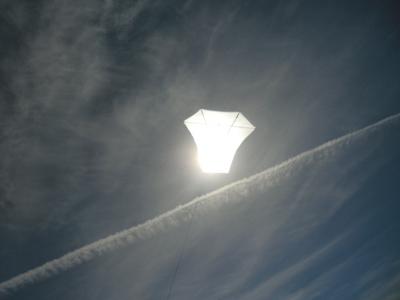

Cool halo around the kite at the college

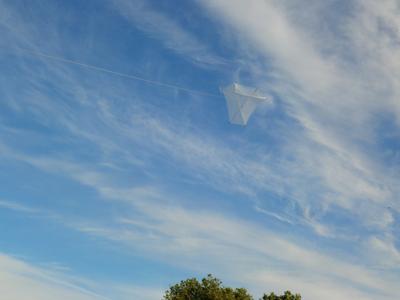

In flight shot at 100 feet or so

As of yesterday, I had flown a total of three short test flights with my Multi-Dowel Barn Door kite. This is due to my job, recent move, and spending my remaining fractions of time with my lovely bride, Sarah and Brennan.

Despite the busy schedule, I have been able to make two very short flights that were really just for making sure that this behemoth barn door will actually fly. We have lots of trees and power lines here in Shedd. It did fly, but the trees were looking very hungry that day so I reeled it back in to safety.

I also had the opportunity to make a short flight at the local community college. This flight was not the greatest due to low winds and a baseball game roughly 100 feet down wind. I was only able to get it up to about 50 feet or so before the wind died. I was, however, able to infer from this flight that it would be at least as good in light winds as it's smaller ancestor.

(A note to readers... The e-book Making Dowel Kites will be handy if you decide to have this kind of experience for yourself one day - Tim P.)

This time, I followed the plans pretty close with a few exceptions...

First off, I used small pieces of oak for splices rather than the "drums" that were called for in the plans. These splices began life as a piece of 1"X2"X10" scrap oak. Using a drill press, I drilled several 3/8" holes through the 1" side of the wood. These holes were spaced roughly 1" apart.

Next, I made cuts exactly between the holes which gave me several 1"X1"X2" sleeves that would later be rounded off with a belt sander for looks.

These were then glued to one of the spars waiting to be joined. I must admit that it works very nicely with a very clean look. It also saves a couple ounces overall since the splices only weigh 1/2 ounce or so compared to well over an ounce for 18" of 3/8" dowel. These could be made with a hand drill and a wood saw if that was all you had access to. I would strongly recommend using this system especially if you have access to basic woodworking tools. If this is not the case, the "drums" work and are flight tested.

I also modified the corner strap system to make the sail tension adjustable by means of a trucker's hitch. It's easier to explain the system using pictures. I was having issues with the strings not staying taped to the sail when built as per plans. This made it a bit more complex, but the sail tension is now rock solid!

Construction was pretty simple with my $1.00 sheet of .7 mil plastic drop sheet. I used 3/8" oak dowel, but I'm thinking about moving up to 7/16" since these bend a lot in moderate winds.

I am surprised at the durability of the .7 mil sheet plastic even in the 15 mph winds that I was flying in. I only used one layer, but it's big enough to carry the extra weight of two layers of plastic.

Using two layers helps with durability when the black tape accidentally contacts the sail. My current sail has a number of small holes from stray pieces of tape that I use to lash the spars together. These small holes are inconsequential due to the huge amount of sail area. It boasts roughly 40 square feet of sail area!

The total cost was around $7.50 USD. That includes the tape, plastic, and 6 dowels. I already had the oak for my splice joints so this was of no cost to me.

Building the frame was not terribly difficult, but the sail took the entire width and length of my kitchen floor to layout and cut. This is of course after I relocated the dining room table to the wall.

After all this, I was barely able to get my sail laid out flat on the floor with just enough room to walk around it. Of course, I folded it in half to get symmetry when I cut it out.

Taping the edges was very easy and quick with the 1 1/2 " cellophane tape. On the other hand, building and attaching the sail pockets was a bit difficult but certainly doable. I never got around to re-enforcing the bridle holes. This step is not vital, but it will make the sail last longer.

FYI, I am more than happy to share my pictures, methods, and knowledge with anyone wanting to explore the above mentioned options.

Now to the flying!

The first flight was short, and iffy but it flew in some pretty light winds with the help of some thermals. Even in these light 5 mph winds, it pulled pretty hard. It pulled so hard that I was hesitant to fly on 50 pound line in any kind of wind. I ended up bringing it in after a few moments because the wind was pretty light and there was no sign an increase.

A few days later, I flew it once again in the front yard, but with very limited room between the walnut tree and the pear tree. There really isn't a good place to fly here in Shedd unless I want to fly from the side of the road or something.

This was mainly an exercise in setting up and making sure everything was still there and useable after being rolled up for three weeks. I have trouble keeping the bridles untangled, so I usually take the lines completely off the spars and just re-tie them once I get the frame and sail laid out. It's not too much trouble, but I need to get a system sorted out before I get too frustrated and move on to kite with an easier setup.

Fortunately, my 1000 foot spool of 150# line which I ordered through an online site called Emma Kites showed up just in time. $14.00 is not a bad price for that much line! This was a great time for me to rebuild my spool after the 50# line crushed all the 1/4" dowel cross members. I don't think any kind of line will bend the six 1/4-20 bolts that took the dowels' place!

It was very nice to not have to worry so much about my line breaking. I have no idea when I will be able to get all that line out at once, but I'll find a way! Maybe I will get some box kites up in train?

We chose to fly at Willamette Park again but the wind was very strong for the spars. Nevertheless, I managed to get it rigged and flying. There was a tendency to lean to the right just as the Dowel Barn Door did. This was easily fixed by adjusting the bridle about two inches at a time.

I finally got it to fly true...ish after my lovely assistant attached about ten feet of my crepe paper to the higher side. Even with the crepe paper, it still leaned about 10 degrees to the right with more pronounced dives during a gust.

In fact, it was really just too windy for this kite to soar at altitude. While observing it, I noticed that the kite had some issues deforming in the stronger winds. It didn't break my splice which is was really cool.

Altogether, it was up for only 20 minutes or so due to excessively strong winds above the trees. I think the winds were around 20 mph, but I don't know for sure.

Although it was possible to move the tow point for higher winds, I chose to keep it set for moderate winds because the winds above the tree line were likely to be too strong. On the other hand, the winds below the tree line (75'-100') were very gusty so my kite would cycle from pulling very hard to drifting toward me because the tow point was too far forward at that moment.

I was able to get above the trees and into some smoother air for a few moments toward the end of the flight. This was after re-adjusting the bridle to get some climb out of it.

It was fun to see, but the winds were very strong and threatened to break the spars on more than one occasion. This would have sent the kite into the top of a tree that I simply would not be able to (legally) climb because I was in a public park. Bringing this kite back in was a real workout for my arm as well.

I guess the maximum altitude was close to 200 feet maybe less. It's hard to tell when the kite is so big.

Being Father's day, my wife came along which would make this an "adventure date." She played the role of in flight photographer so I had plenty of pics to choose from. In view of the "date" aspect, I wanted to keep it short rather than getting too involved in my kite flying and ignoring her! Her company is always welcome on these outings.

I hope to get up in some reasonable winds that are better for thermaling. Maybe I will get it all the way up to 1000 feet! Just don't tell the Feds. Besides, the FAA really doesn't care about kites, but being an ultralight enthusiast, I care. I can only imagine the damage that a very large kite would do to an aircraft.

I will write again when I have a nice long flight with this Multi Dowel kite. I can certainly see some KAP opportunity for adventure with this monster of a kite!




Download the e-book Making Dowel Kites here.


Comments for Multi-Dowel Barn Door Kite:
Testing the Strength

Average Rating starstarstarstarstar

Click here to add your own comments

Jun 24, 2013
Rating
starstarstarstarstar
Bridle Issues
by: Tony Sangster

What a fantastic achievement!

For stowing bridles you may wish to daisy chain the bridle lines so that when you unpack and set up they can be easily unraveled.

Or make a bridle sock - a long tube of material in which the bridles are stored. The tube needs to be big enough so that the attachment point of the bridle can be clipped at the end of the tube and the tube turned inside out and stripped off the bridle or fed back on at the end of the day.
In some larger kites the sock is left scrunched up on the line during flying.

Hope that helps!

Jun 24, 2013
Rating
starstarstarstarstar
Construction
by: Tim Parish

So the big 8 ft Barn Door flies at last! Great stuff.

A few notes re construction... My original has the shoe-lace corner tie poked through the tiniest hole possible, with ample layers of tape in that region to prevent the (large) knot pulling through. Taping the shoe-lace on the other side of the sail is really just for looks and neatness.

Perhaps you did all this and it still pulled through, due to those fresh winds! Mine's held so far, but I haven't really pushed it to the limit I must admit. It has pulled about 6kg on the spring scales though.

The drums work great, requiring only a cheap hacksaw - making it doable for almost anyone. Sounds like you have come up with a great alternative though, for those with basic woodworking tools. Lighter is better for sure.

Re the finicky bridle :-) I know what you mean. From experience with the Rok, which has an even more complex bridle...

Try sitting the kite on its trailing edge or just airborne and catching some breeze, while you control it with the upper lines. A little fiddling around will usually get the lines in order. Point is, it seems to be easier with some tension in the bridle lines.

In my case I have the attachment points fixed with glue anyway, so re-tying isn't an option.

Reinforcing the holes in the sail would certainly be a nice touch - I thought about it, but perhaps was impatient to fly. Or lazy...
