The Dopero kite has a well-earned reputation for being an excellent light wind flier. It flies at high line angles like a Delta, and yet has very good stability and lifting capacity as well.
Modern Doperos are often constructed from Rip-stop nylon sail material and carbon fiber spars for minimum weight. These are superb kites, and they come at a price to match. However, it is also possible to own your own Dopero for just a few dollars by making it yourself from cheap materials. See the downloadable books over there on the right...
The Dopero is basically 2 Pearson Roller kites side by side. The name was extracted from the words DOuble PEarson ROller.
You could be forgiven for thinking Dopero means something in Spanish... If it does, it's unlikely to have anything to do with kites!
Some influential kite aerial photography people, such as Brooks Leffler, say it is the best light wind kite they have ever flown for this purpose.
With the aid of an e-book like the one over there on the right, just about anybody can make a decent kite which flies high and stable. It's satisfying to fly something you made on your own!
With the aid of an e-book like Making The MBK Dowel Dopero Kite, just about anybody can make a decent kite which flies high and stable. It's satisfying to fly something you made on your own!
The photo over there of the purple and blue kite is courtesy of James Gentles. Can you tell he's a Scotsman...
Many kite fliers choose to build one of the 2 original designs, straight from the plans. The larger one of these is known as the Ultra Light Maxi Dopero, and is the ultimate light wind KAP kite.
However, the Dopero kite is now available from a small number of kite shops and manufacturers. Some of these tend to be very high quality kites, so they aren't cheap!
Here's a few comments on each of the above points.
Size. The original Dopero kite was under 3 meters in span. The Maxi was made shortly after, and had a more impressive span of 3.75 meters (over 12 feet) Both sizes are copied today, with small variations.
Shape. Not much to add here. People probably don't want to mess with the original shape too much, as they are after predictable performance. They want the kite to fly 'as advertised'!
Construction. Some designs build a little extra strength in by using slightly thicker material for the main cross spar. For example, 8mm rod while all the others are 6mm. Another refinement is using elastic material to connect spar segments together, to allow quicker assembly. This makes sense since the Dopero has a reputation for being slightly more inconvenient to assemble than other similar sized kites. I bet it's easier than a Cody though!
Using old-fashioned bamboo spars still results in a great light-wind kite, with the added advantage that they are tougher in the case of an accident. Less expensive to replace too, of course!
The original Maxi version was built with 2 open vertical keels on the rear sail, for even greater stability and prevention of over-flying.
Tails. As already mentioned, the Dopero kite does not need tails. However, some like to add tails just for the visual effect. Also, KAP enthusiasts often add tails to kites that don't strictly need them, just for additional stability. Don't want to blur that picture!
Decoration. Most of these kites made so far are valued for their flying characteristics rather than their looks. Hence the decoration is usually limited to simple areas of color and straight lines. With such a large area of sail though, there's nothing to stop someone from getting arty with one of these kites! They would have to be careful with weight though, to avoid spoiling the extreme low wind performance. In fact, I have seen an image of a very ornately decorated Dopero. I spotted it during an online image search, and it was from a forum in the Middle East.
Bridle. The 4 point bridle consists of 2 loops, with a connecting line. Just like a simple 4 point Rok bridle. The top loop connects to where the longerons cross the main cross spar. The other loop is connected at both ends to the longerons also, near or behind the leading edge of the rear sail. The flying line attaches to the connecting line. Some designs use a ring as a simple means of creating a shiftable towing point on the connecting line. If you know what you are doing, you can also use a shiftable friction knot instead, such as a Prusik Knot.
Sail. Although Rip-stop nylon is a popular choice for the sail material, some of these kites have used the more expensive Icarex P31 material.
With the increased availability of these kites from shops now, don't be surprised to see one flying with no KAP rig attached. And why not. Everyone needs at least one kite to pull out on those nearly-dead-calm days!
My collection of real-life Dopero kite stories is worth checking out!
Illustrated with photos and videos, of course.
Even on windier days, a Dopero kite still comes in handy for flying 'line laundry'. Inflatables, spinners, windsocks, that kind of stuff.
On the other hand, a lot of Kite Aerial Photography is being done with these kites. The large Maxi Dopero is a useful lifter even in the lightest breezes. Even though the kite can take a while to assemble, at least shots can be taken when other kites won't fly at all.
Kite Aerial Photography enthusiasts like James Gentles are fond of this design.
In a way, the history of the Dopero kite goes way back to 1909, when its ancestor the Roloplan was first sold. The Roloplan was a German design which was copied and refined in the early 1970s to become the well-known Pearson Roller. The Roller was and still is a very good light-wind kite.
Finally in 1994 a young German KAP enthusiast, Ralf Beutnagel, made a kite like 2 Pearson Rollers side by side. This resulted in a somewhat bigger kite with 4 bridle points instead of 2. The extra lifting power was needed to get the camera gear aloft, the Pearson design being a bit too small for the job. When comparing plans for the original Roloplan with those of a modern Dopero, it's very easy to see the connection!
Plans for the original Dopero design and a much larger Maxi version were published in the KAP magazine Aerial Eye late in the 1990s.
Driven by demand from the KAP community mainly, the Dopero kite
has been produced commercially since the Millennium and remains a
favorite light wind kite for that purpose. In fact, in 2006 the Dopero
featured in a notable piece of KAP history. That is, the re-creation of
the famous San Francisco earthquake photo of 1906. Scott Haefner used a
Dopero kite to hoist a 1.3 kg (3 pound) KAP rig in light winds, near to
where the original panoramic photograph was taken.

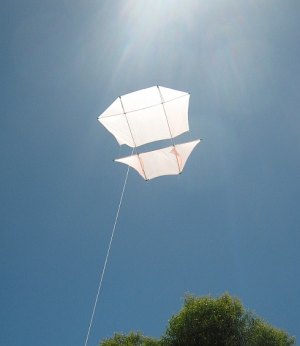

Here's one of our own home-made Dopero kites in flight...
The "Making Dowel Kites" e-book has this kind of kite and many others in wooden dowel, tape and plastic. A handy approach is to just print out the pages for the kite you want to make next. The e-book is also handy for working off-line on a laptop or other device.
You might have noticed that this site has a monthly newsletter...
For single-line kite fliers and builders, it's always been a good read. But if you are interested in KAP and/or large home-made kites you won't want to miss it!
So sign up today, and download the free 95-page e-book "What Kite Is That?" straight away. Info-packed and fully photo-illustrated.
And there are even more free resources, such as a kite-making e-course, waiting for you in the next issue of this newsletter.
Jul 28, 14 05:06 AM
This was an experiment with mounting a camera directly onto the kite. With winds gusting to over 30kph up high, the Fresh Wind Barn Door kite was selected...
In a word, it was tricky. I mounted the camera as close as possible to the center of gravity of the kite, but it still ended up quite a few cm closer to the trailing edge than I would have liked. It was only practical to mount he camera - on its bendy tripod (!) - near the diagonal spars crossing point. Electrical tape secured 2 short tripod legs to the diagonal spars, holding the camera upright with the kite sitting on its trailing edge.
It was a struggle to get enough lift to gain much height, and the kite swung dangerously from side to side. Might try the drogues next time! I did my best to urge the kite higher in mid-swing.
Eventually, for a few seconds, the kite got to around 100 feet on almost 200 feet of 200 pound Dacron.
A video clip will of course be forthcoming on Facebook. And only seasoned kite fliers will bother watching it all the whole way through, possibly wrestling with sea-sickness all the while. Hence the title of this post. Still, it was an interesting, if slightly nerve-wracking, outing! At shoulder level, the breeze measured around 9kph gusting to 18.5kph. Some low cloud over the hills was absolutely tearing along, perhaps up around 40kph.
